Explore the high-performance, low-power world with the tiny, affordable, open-source Beagles. Putting Android, Ubuntu and other Linux flavors at your fingertips, the Beagle family revs as high as 1.5GHz with flexible peripheral interfaces and a proven ecosystem of feature-rich "Cape" plug-in boards.

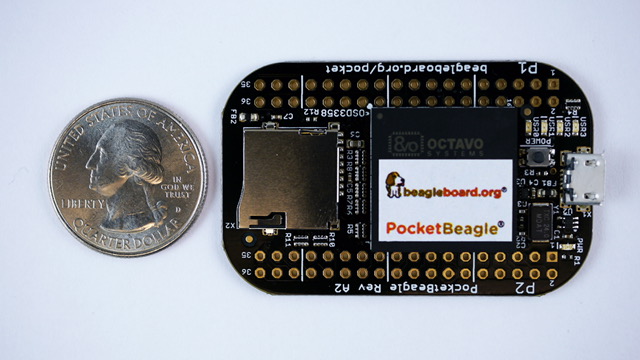

Ultra-tiny-yet-complete open-source USB-key-fob computer. PocketBeagle features an incredible low cost, slick design and simple usage, making PocketBeagle the ideal development board for beginners and professionals alike.
- Based on new Octavo Systems OSD3358-SM 21mm x 21mm system-in-package that includes 512MB DDR3 RAM, 1-GHz ARM Cortex-A8 CPU, 2x 200-MHz PRUs, ARM Cortex-M3, 3D accelerator, power/battery management and EEPROM
- 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog inputs, 44 digital I/Os and numerous digital interface peripherals
- microUSB host/client and microSD connectors
What can they do?
- The Beagles are tiny open-hardware (you could make one yourself), open-software computers that plug into whatever you have around the house.
- Beagles mean big functionality in small packages because these little PCs can be used for all kinds of applications you've been tinkering with... and can handle many of the same tasks as your desktop PC.
- The Beagle family is happiest when helping students to learn programming, hobbyists to push the bounderies of DIY and developers move to production quickly without excess noise, expense or bulk.

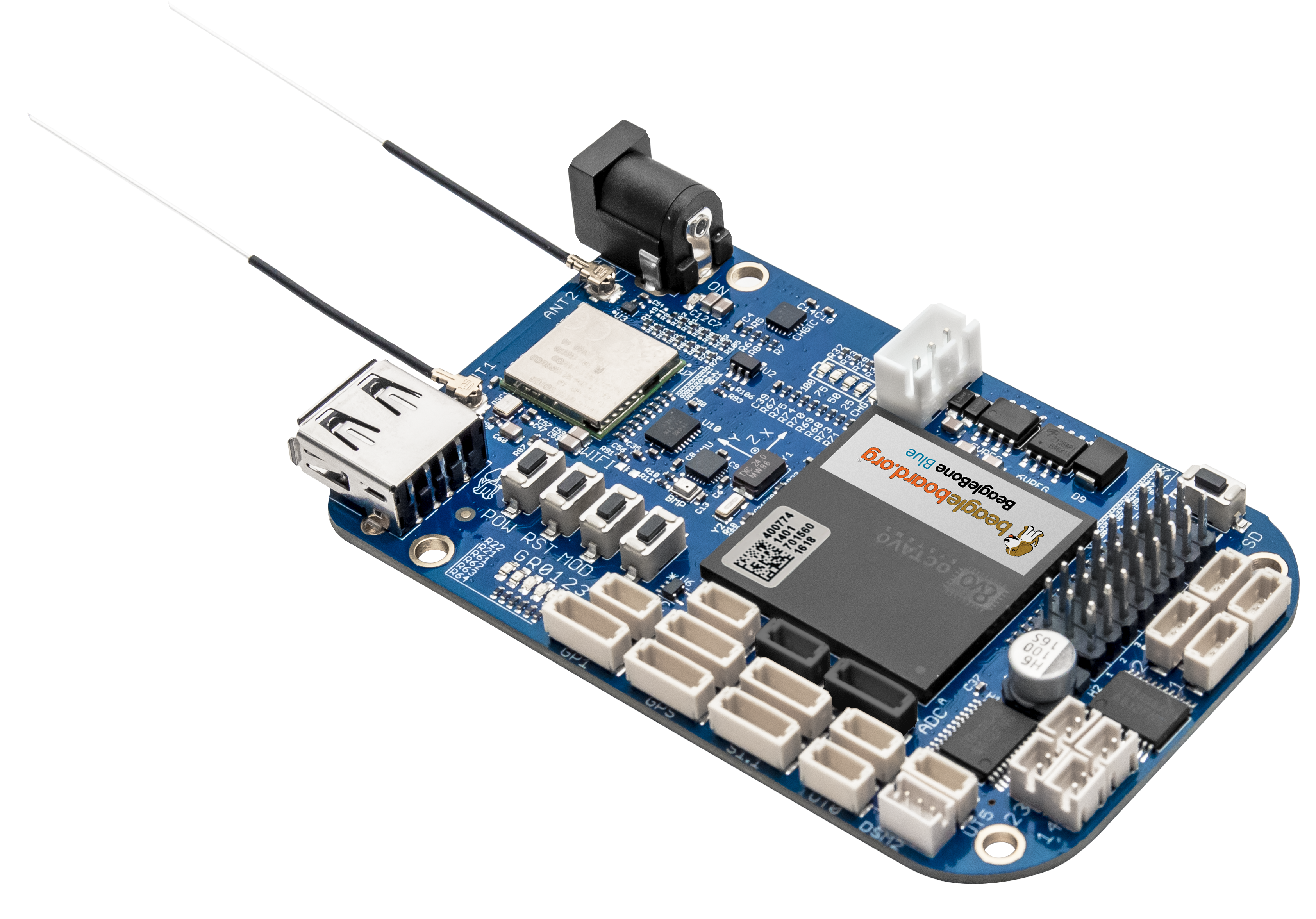

Complete robotics computer ready to fly or rove. Flexible networking and rich set of robotics-oriented peripherals make building mobile robots quick and affordable.

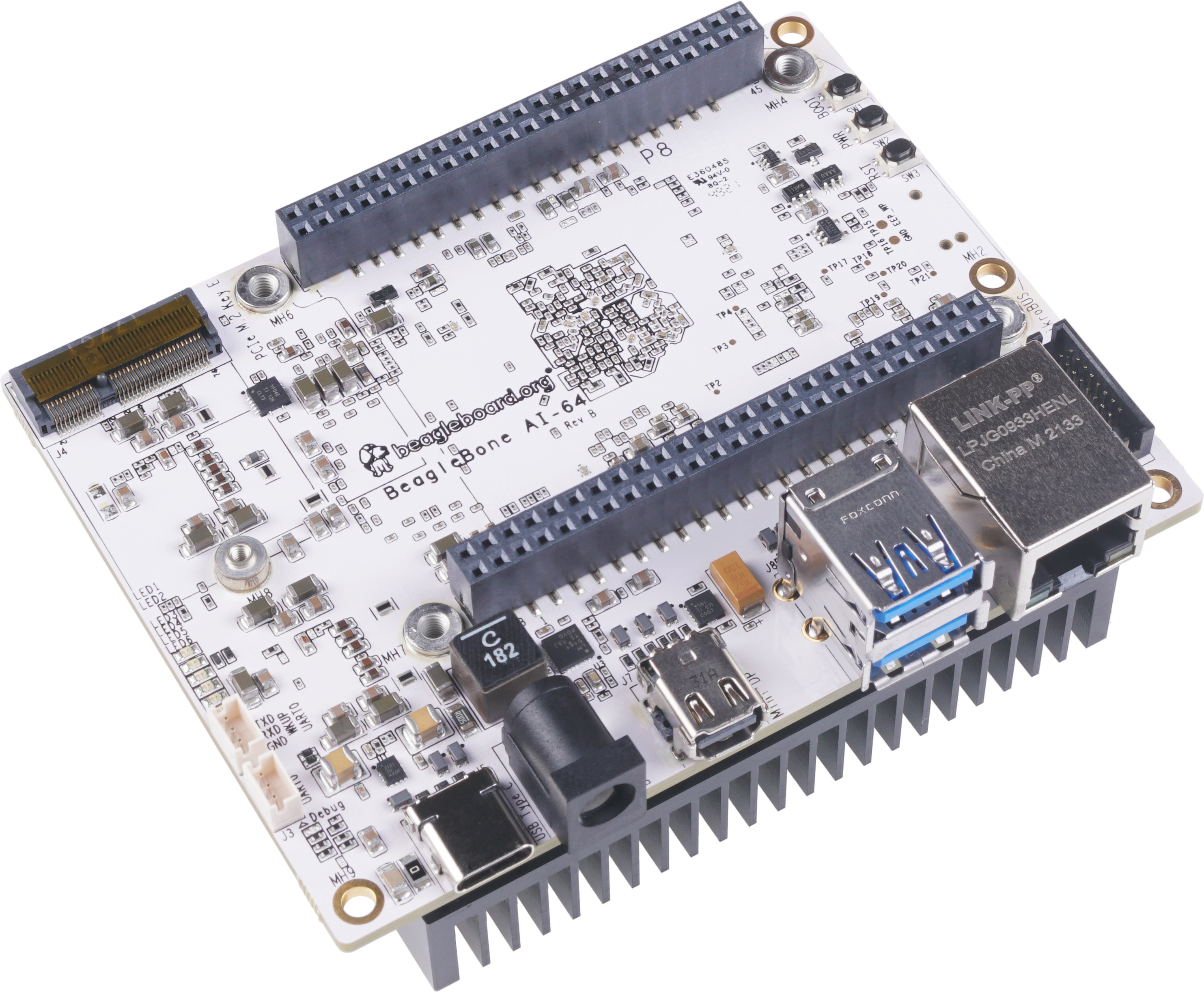

Multitude of powerful processing cores for diverse embedded computing needs.
Product Comparison Table

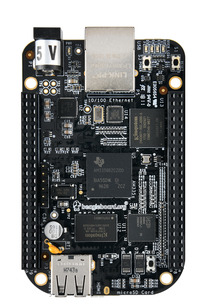

|PocketBeagle||BeagleBone Black||BeagleBone Blue||BeagleBone AI-64|
2x ARM Cortex-A72
|Maximum Processor Speed||1GHz||1GHz||1GHz||2GHz|
|Co-processors||2x200-MHz PRUs, ARM Cortex-M3, SGX PowerVR||2x200-MHz PRUs, ARM Cortex-M3, SGX PowerVR||2x200-MHz PRUs, ARM Cortex-M3, SGX PowerVR||12x200-MHz PRUs, 6x ARM Cortex-R4, SGX Rogue 8XE GE8430, 2K HD video enc/dec|
|Analog Pins||2 (3.3V), 6 (1.8V)||7 (1.8V)||4 (1.8V)||7 (3.3V)|
|Digital Pins||44 (3.3V)||65 (3.3V)||24 (3.3V)||72 (3.3V) (7 shared with analog)|
|Memory||512MB DDR3, microSD card slot||512MB DDR3, 4GB on-board storage using eMMC, microSD card slot||512MB DDR3, 4GB on-board storage using eMMC, microSD card slot||4GB LPDDR4, 16GB on-board storage using eMMC, microSD card slot|
|USB||USB 2.0 480Mbps Host/Client Port, USB 2.0 on expansion header||USB 2.0 480Mbps Host/Client Port, USB 2.0 Host Port||USB 2.0 480Mbps Host/Client Port, USB 2.0 Host Port||USB 3.0 5Gbps Client Port, 2x USB 3.0 5Gbps Host Ports|
|Network||add-ons||10/100 Ethernet||2.4GHz WiFi, Bluetooth, BLE||Gigabit Ethernet, M.2 w/ PCIe/SDIO/USB|
|Video||SPI displays||microHDMI, cape add-ons||SPI displays||miniDP, DSI, cape add-ons|
|Audio||add-ons||microHDMI, cape add-ons||add-ons, Bluetooth||miniDP, mikroBUS shuttle add-ons, cape add-ons|
|Camera||add-ons, USB||cape add-ons, USB||add-ons, USB||2x CSI (4-lane, 22-pin), cape add-ons, USB|
|Supported Expansion Interfaces||3x UART, 4x PWM, 2x SPI, 2x I2C, 8x A/D converter, 2x CAN bus (w/o PHY), 2x quadrature encoder, USB||4x UART, 12x PWM/Timers, 2x SPI, 2x I2C, 7x A/D converter, 2x CAN bus (w/o PHY), LCD, 3x quadrature encoder, SD/MMC, GPMC||4x UART, 2-cell LiPo, 2x SPI, I2C, 4x A/D converter, CAN bus (w/ PHY), 8x 6V servo motor, 4x DC motor, 4x quadrature encoder||4x UART, 12x PWM/Timers, 2x SPI, 2x I2C, 7x A/D converter, CAN bus (w/o PHY), LCD, 3x quadrature encoder, SD/MMC|
|On-board Sensors||-||-||10 degree of freedom IMU (accelerometer, gyroscope, magnetometer, thermometer), barometer/thermometer||on-die temperature|
OpenROV Underwater Robot
Learn how to create an open source telerobotic submarine for use in exploring underwater environments
Explore the internet of things by using these tiny, cloud-enabled computers to control and build apps that talk to connected devices
BeagleStache: OpenCV face detection
Build on an OpenCV face detection sample to add a black mustache on the faces detected and upload the image to social media
3D vision for Beagle
Deploy gesture recognition and full body tracking quickly and efficiently with the Omek Interactive Beckon™ Development Suite, a full-featured set of middleware and tools
Replicape 3D Printer Cape
Convert your BeagleBone or BeagleBone Black into a 3D printer by creating this cape add-on board
Autonomous Solar Car
Use Beagle to make the world greener today and for generations to come by creating a solar-energy-powered autonomous car
Haptic Belt for the Blind
Help those without sight move around obstacles using Beagle + Kinect, vibrating motors and audio alerts for relaying more complex signals
